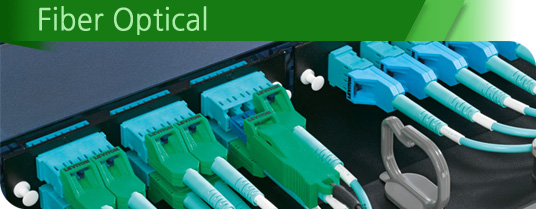

 통합배선 시스템 > Product > Cable > Fiber Optical |
|
 |
| |
 |
 |
| specifications |
50/125 µm Multimode system(OM3) |
50/125 µm Multimode system(om4) |
| |
850nm |
1300nm |
850nm |
1300nm |
| max attenuation (db/km) |
3.0 |
1.0 |
3.0 |
1.0 |
| overfill launch minimum bandwidth (mhz/km) |
1500 |
500 |
3500 |
500 |
| effective modal bandwidth (emb)(mhz/km) |
2000 |
N/A |
4700 |
- |
| 1Gbe transmission distance(meters) |
1000 |
600 |
1000 |
600 |
| 10Gbe transmission distance(meters) |
300 |
300 |
550 |
300 |
| 40/100Gbe transmission distance(meters) |
100 |
N/A |
125 |
N/A |
|
| |
| 표준 지원사항 |
 |
100BASE-FX, 1GBASE-SX, 1GBASE-LX, 10GBASE-S, 10GBASE-LX4, 10GBASE-LRM, |
| |
40GBASE-SR4, 100GBASE-SR10 |
|
Infiniband |
|
1, 2, 4, 8, 10기가 광 채널 |
| |
|
|
| 어플리케이션 |
|
데이터센터 인프라 |
|
고대역폭 기업체, 빌딩 자동화 및 보안 |
|
중견기업, 대기업의 네트워크 |
|
고성능 컴퓨터 클러스터 |
|
40G/100G 신호 전달 |
|
VCSEL-Base 전파 |
|
| |
 |
| specifications |
62.5/125 µm lo multimode system(om1) |
50/125 µm lo multimode system(om2) |
| |
850nm |
1300nm |
850nm |
1300nm |
| max attenuation (db/km) |
3.5 |
1.0 |
3.0 |
1.0 |
| overfill launch minimum bandwidth (mhz/km) |
200 |
500 |
950 |
500 |
| effective modal bandwidth (emb)(mhz/km) |
300 |
600 |
750 |
600 |
| 1Gbe transmission distance(meters) |
36 |
300 |
150 |
300 |
|
| |
| 표준 지원사항 |
|
100BASE-FX, 1GBASE-SX, 1GBASE-LX, 10GBASE-S, 10GBASE-LX4, 10GBASE-LRM |
|
1, 2, 4기가 광 채널 |
| |
|
|
| |
 |
| specifications |
Single-mode system(os1/os2) |
| |
1310nm |
1550nm |
| max attenuation (db/km) |
3.5 |
1.3 |
| overfill launch minimum bandwidth (mhz/km) |
5,000 |
n/a |
| effective modal bandwidth (emb)(mhz/km) |
10,000 |
n/a |
|
| |
| 표준 지원사항 |
|
1GBASE-LX, 10GBASE-LX, 10GBASE-LX4, 10GBASE-L, 10GBASE-EX |
|
1, 2, 4, 8 , 10기가 광 채널 |
| |
|
|
|
| |
| |
|
|
|
|
 |
|
|
